Breaking in a new soft wheel

New soft diamond wheels have high spots on the face and need breaking in before they cut properly. How to do it, how long it takes, and why a new wheel can seem slow until you do.

A new or freshly resurfaced soft diamond wheel has high spots on its face, and it needs breaking in before it cuts properly: run agate or a similar material across the face, with water on, for about 2 to 4 minutes. Finer grits take longer. Until it is broken in, a new wheel can seem slow or leave an uneven finish. That is not a defect.

Why a new wheel needs it

A new wheel's face is not perfectly level. It carries high spots, and until they wear down the wheel rides on them instead of cutting across the whole face, so it can feel slow or leave an uneven finish. Breaking in wears those high spots down so the face runs true and cuts evenly. The instructions for our SuperNova wheels say to break them in by sanding or polishing.

How to do it

Breaking in a new SuperNova soft wheel Four steps. Mount the wheel with the right bore or bushing. Turn the water on; soft wheels must run with water. Work agate or a similar stone across the face for 2 to 4 minutes to wear down the high spots. Finer grits take longer; stop when the high spots are gone. Breaking in a new soft wheel From our SuperNova instructions. Applies to SuperNova wheels and belts. 1 Mount the wheel Right bore or bushing, stack tight 2 Water on Soft wheels must run with water 3 Work a stone across Agate or similar, 2 to 4 minutes 4 Finer grits longer Stop when the high spots are gone
From our SuperNova instructions.
  1. Mount the wheel with the right bore or bushing, and tighten the stack. See Arbor and bore sizes.
  2. Turn the water on. Our soft wheels must be used with water.
  3. Work a piece of agate, or another material, across the face to wear down the high spots. About 2 to 4 minutes.
  4. Give the finer grits longer. The instructions say finer grits take longer.

What it applies to

Product Break in
SuperNova soft wheels, every grit Yes
Diamond belts for lapidary Yes
Wheels back from resurfacing Yes, the same way
Smoothing belts for glass No
Hard wheels: nickel bond, sintered Not covered by these instructions

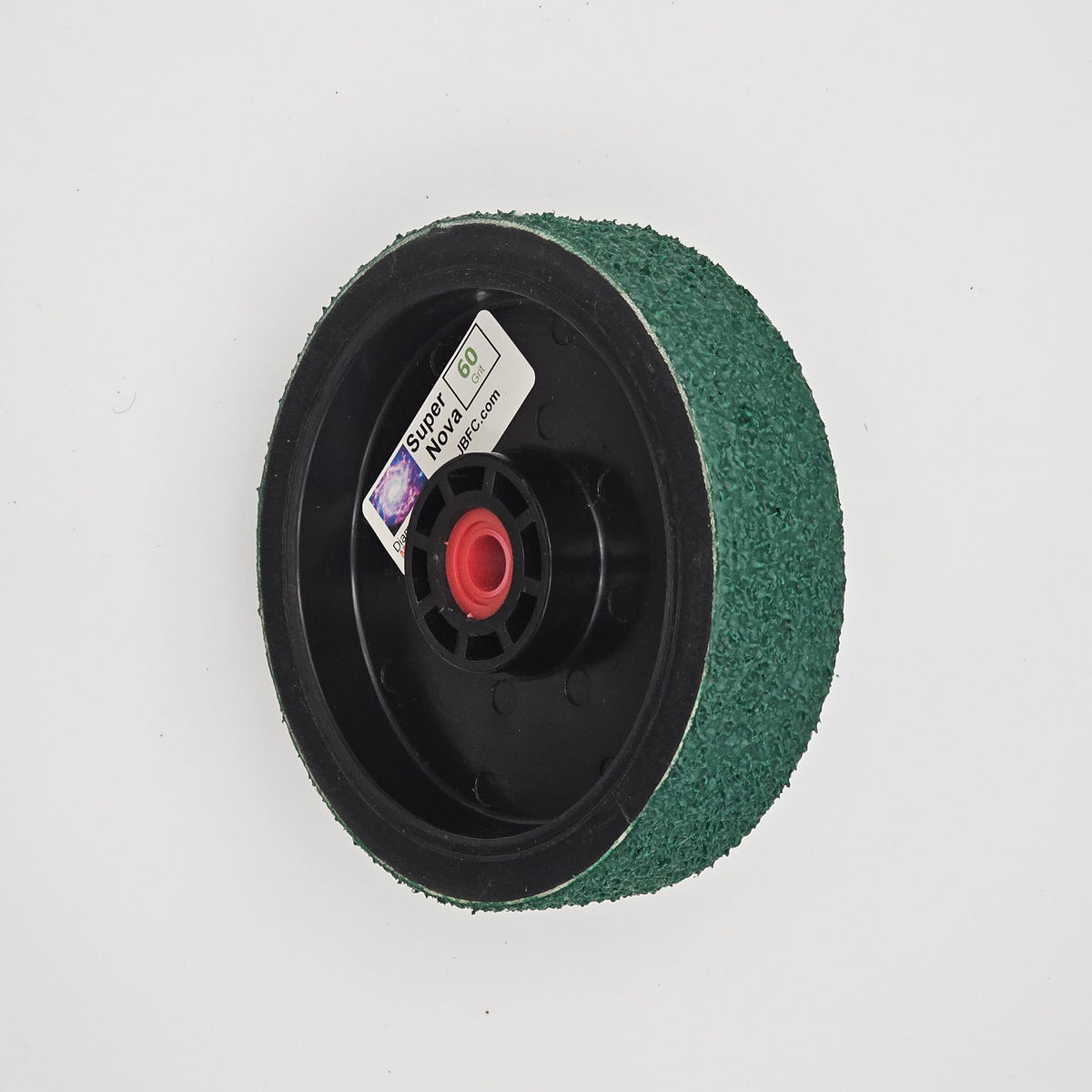

SuperNova soft diamond wheel
SuperNova soft wheel. Break in before first use.

Resurfaced wheels

A wheel back from resurfacing has a freshly surfaced face, and it needs breaking in the same way as a new wheel: agate or similar, with water, for 2 to 4 minutes, longer on the finer grits.

Questions we get

My new wheel is not cutting. Is it defective?
Probably not. New soft wheels have high spots on the face. Break it in: agate or similar, with water, for 2 to 4 minutes, longer on fine grits.

What do I use to break it in?
Agate, or any other material. Our instructions do not require a special dressing stone.

How long does it take?
About 2 to 4 minutes. Finer grits take longer.

Do I need water?
Yes. Our soft wheels must be used with water, including during break-in.

Does a resurfaced wheel need breaking in?
Yes, the same way as a new one.

Do the glass belts need breaking in?
No. Our smoothing belts for glass do not need it. The diamond belts made for lapidary do.

It still is not cutting after breaking in.
Check the fit on the shaft, then call us at 714-771-7007. See also Reading a worn soft wheel.


Related: Arbor and bore sizes, Reading a worn soft wheel, Grit progression for cabbing.
